Finally! The Big Reveal

My loyal readers have had to contend with me waffling about ‘industrial this’ and ‘Georgian that’ for a few months now. This isn’t because I tend to randomly waffle about these subject areas – as part of my research for the current (and as of 4am this morning; submitted) module of my degree course.

So, without further ado it gives me great pleasure to finally post snippets of my research work, the technical aspects of my work and the renders that I created in support of the various design concepts for this space.

This particular blog post is going to be more about the ‘visual’ and less about the ‘theory’ because I’m sick of the sight of words at the minute. And I’m usually all about the words. But not today; staying up until 4am desperately trying to finalise your coursework and typing like a mad woman when you have to get up for work 4 hours later is no joke. So on that note, I’ll let my work do the talking. Think of this as a story board explaining the journey of my design process from day one.

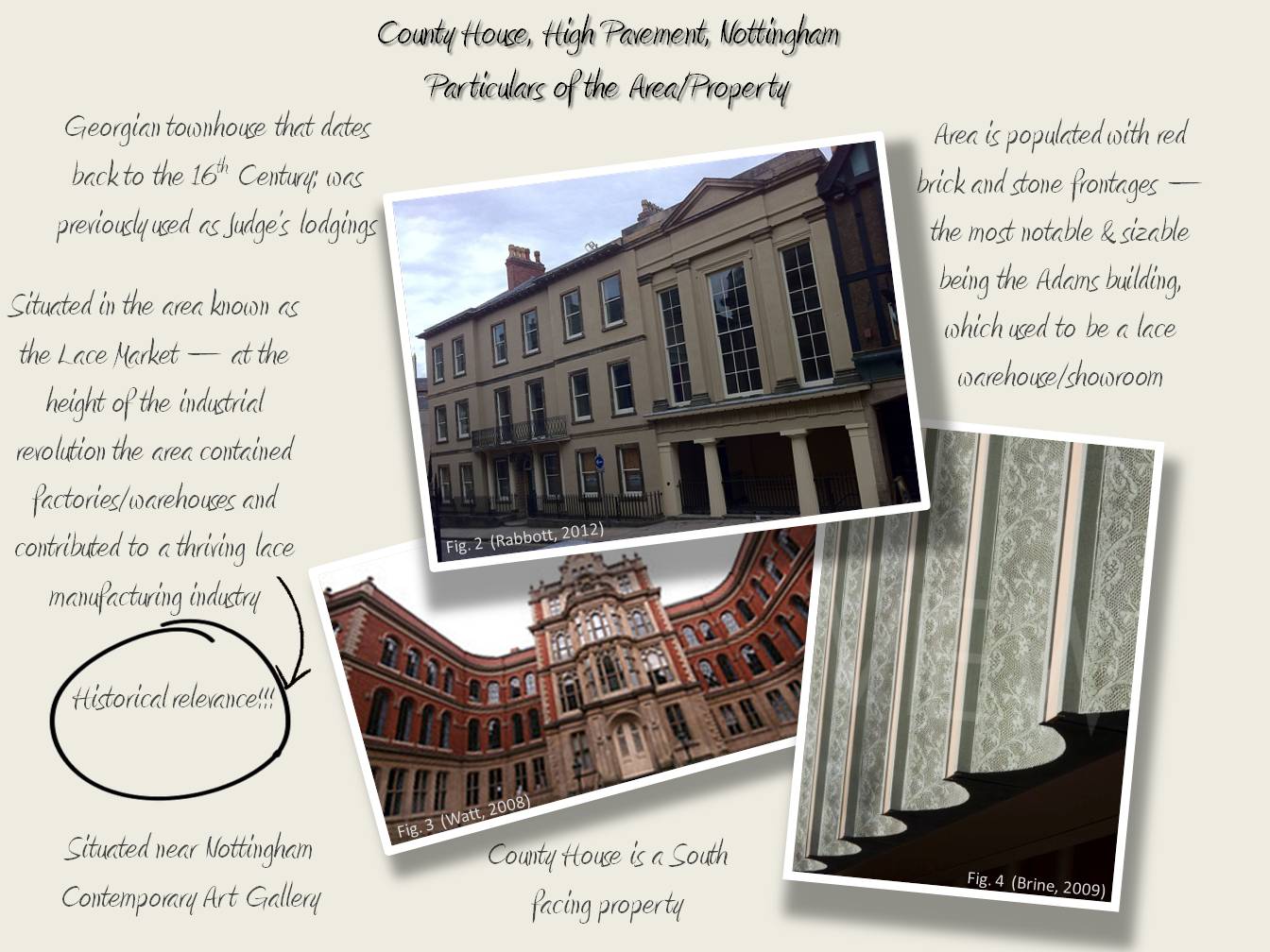

County House Particulars

This is the property (County House) that turned my life upside down. OK, you might think this is a tad melodramatic but my eye bags would disagree.

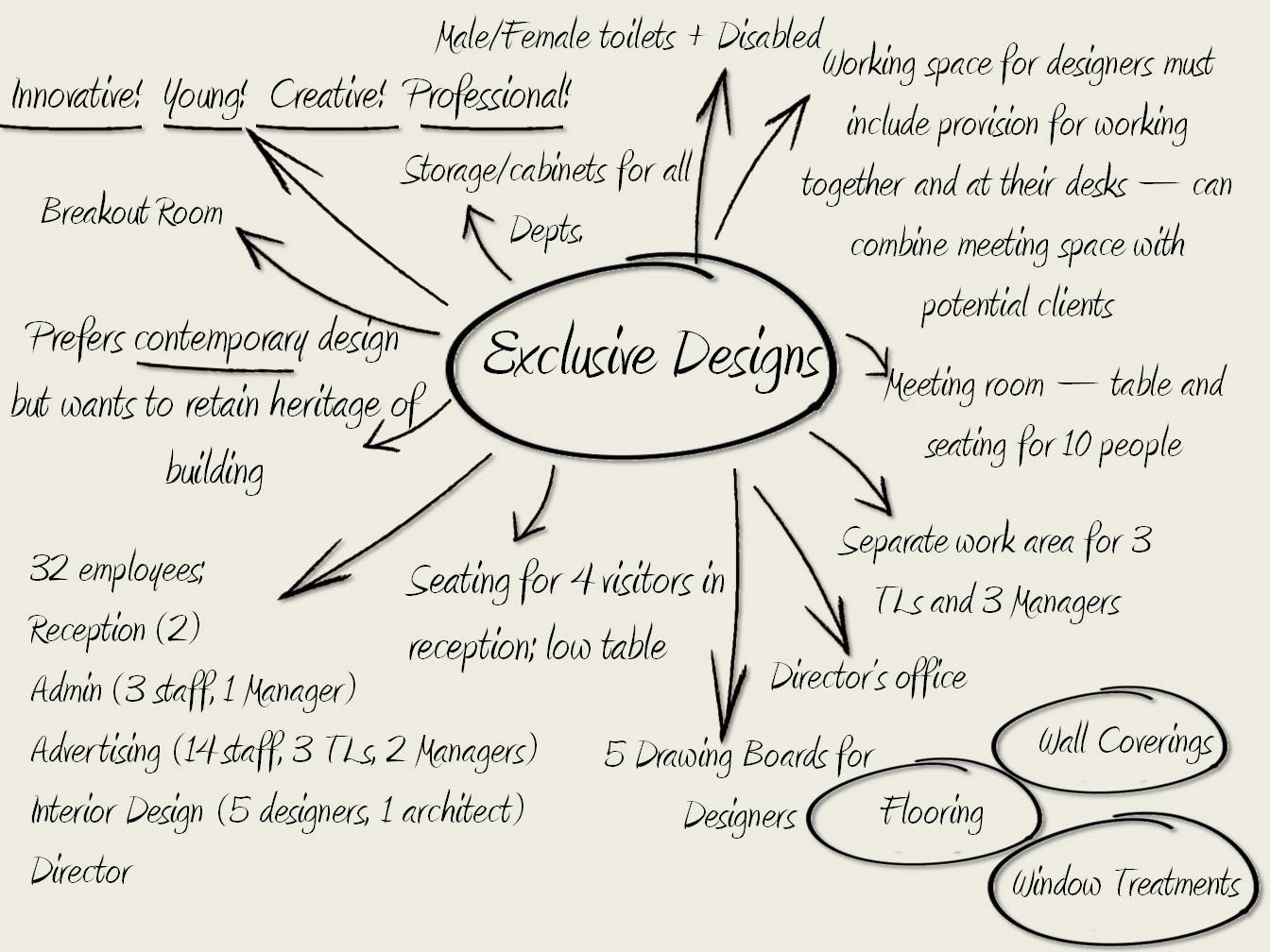

Client Brief

This is the Client Brief. All us ‘designers’ need one; want one and crave one. Just give it to us dammit!

Relationship Diagram

Isn’t this pretty? It’s called a Relationship Diagram. It helps to pull together the various requirements of each space and their relationship to one another. Notice the lace detail? Nice.

Industrial Office Space - Inspiration

We all need inspiration. Yes, even designers. These images illustrate industrial inspired office space.

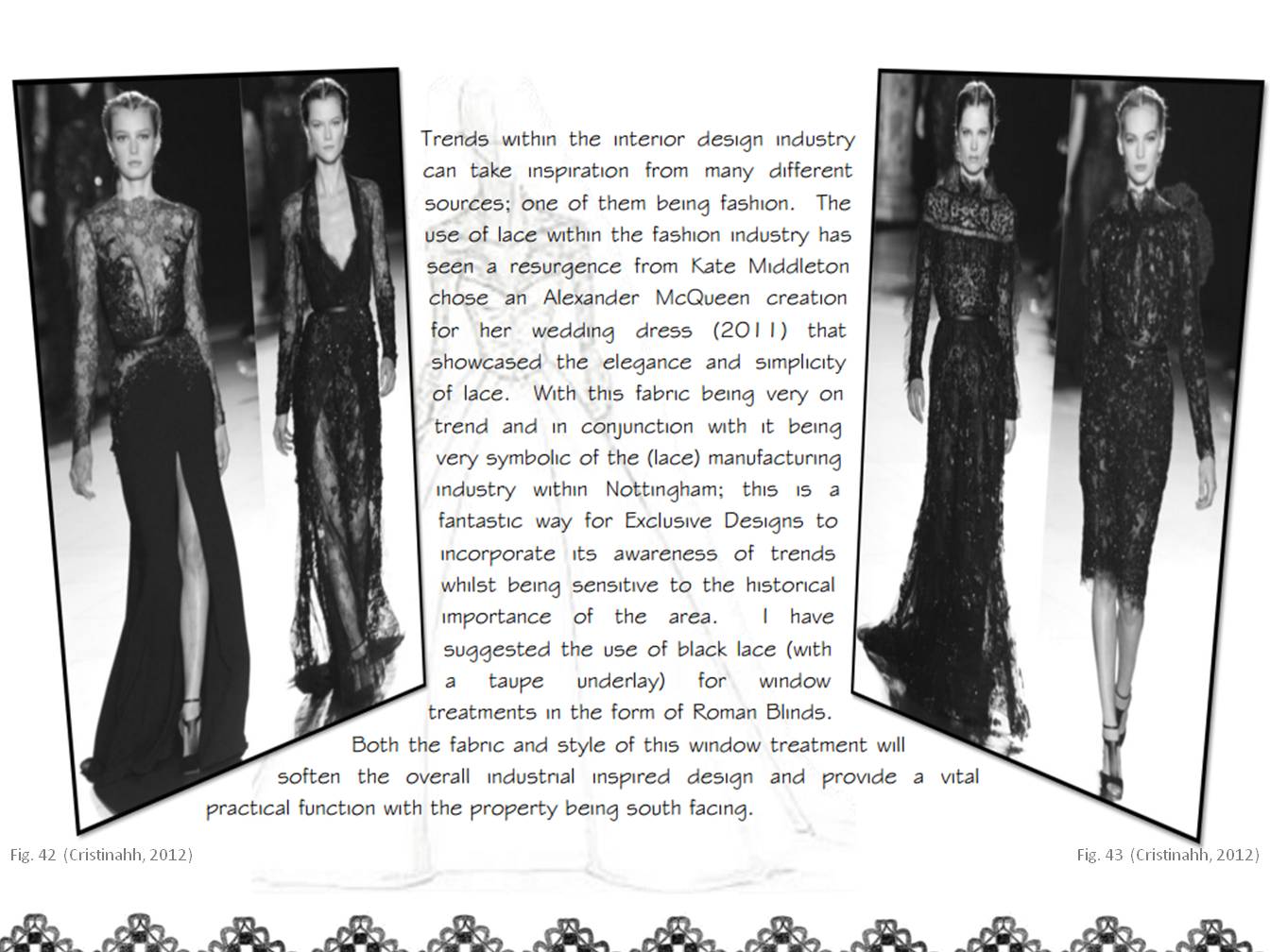

Lace Fashion Indusrty

It’s all about the lace.

Lace Continued

And more lace.

Tolix Chairs

These little gems are called Tolix. And I want one.

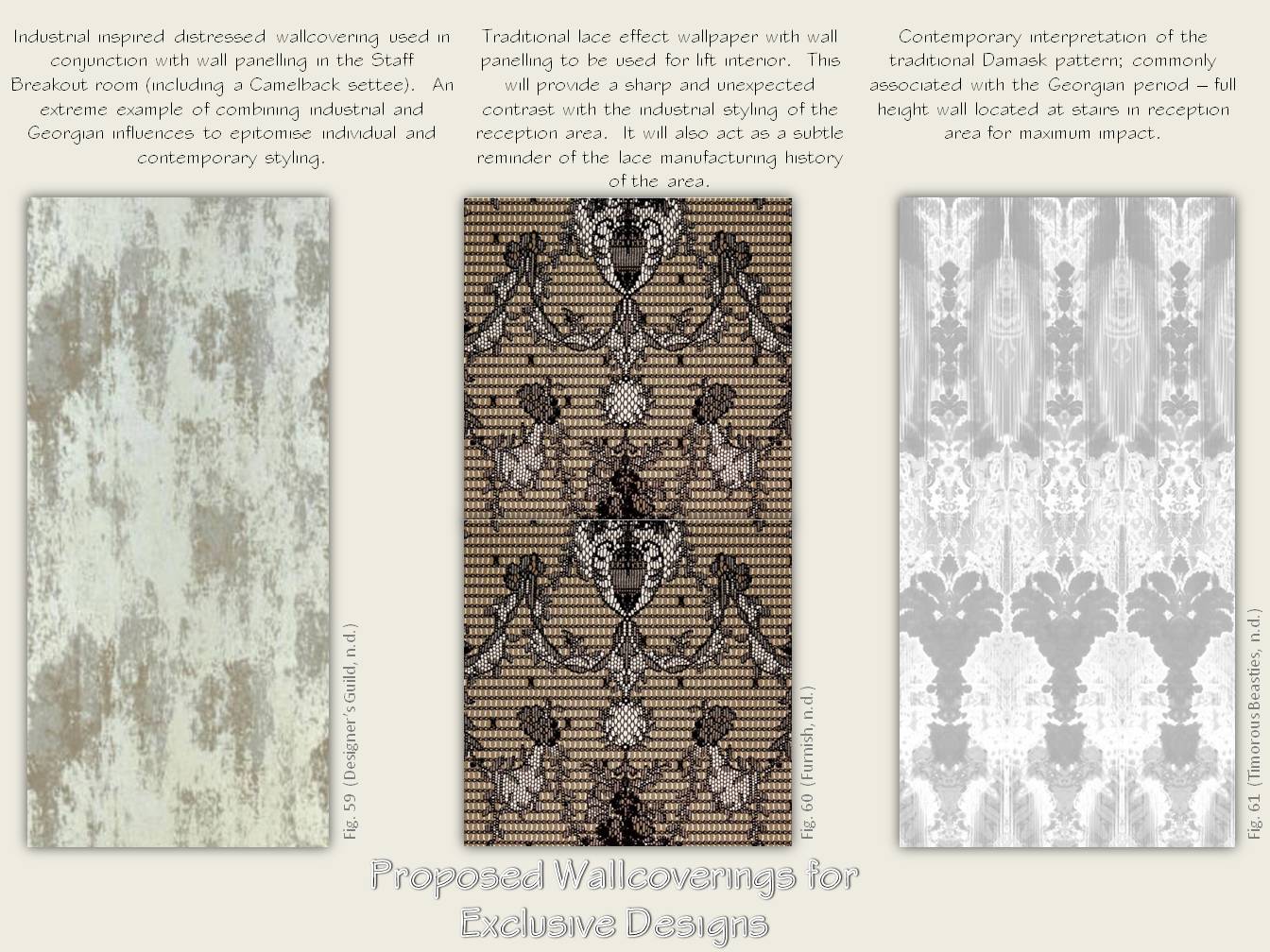

Wallcoverings

Yummy wallcoverings that epitomise the historical location and period of County House.

Lift Interiors

Never underestimate the impact of a lift!

Camelback Sofas

A modern interpretation of the traditional camelback settee.

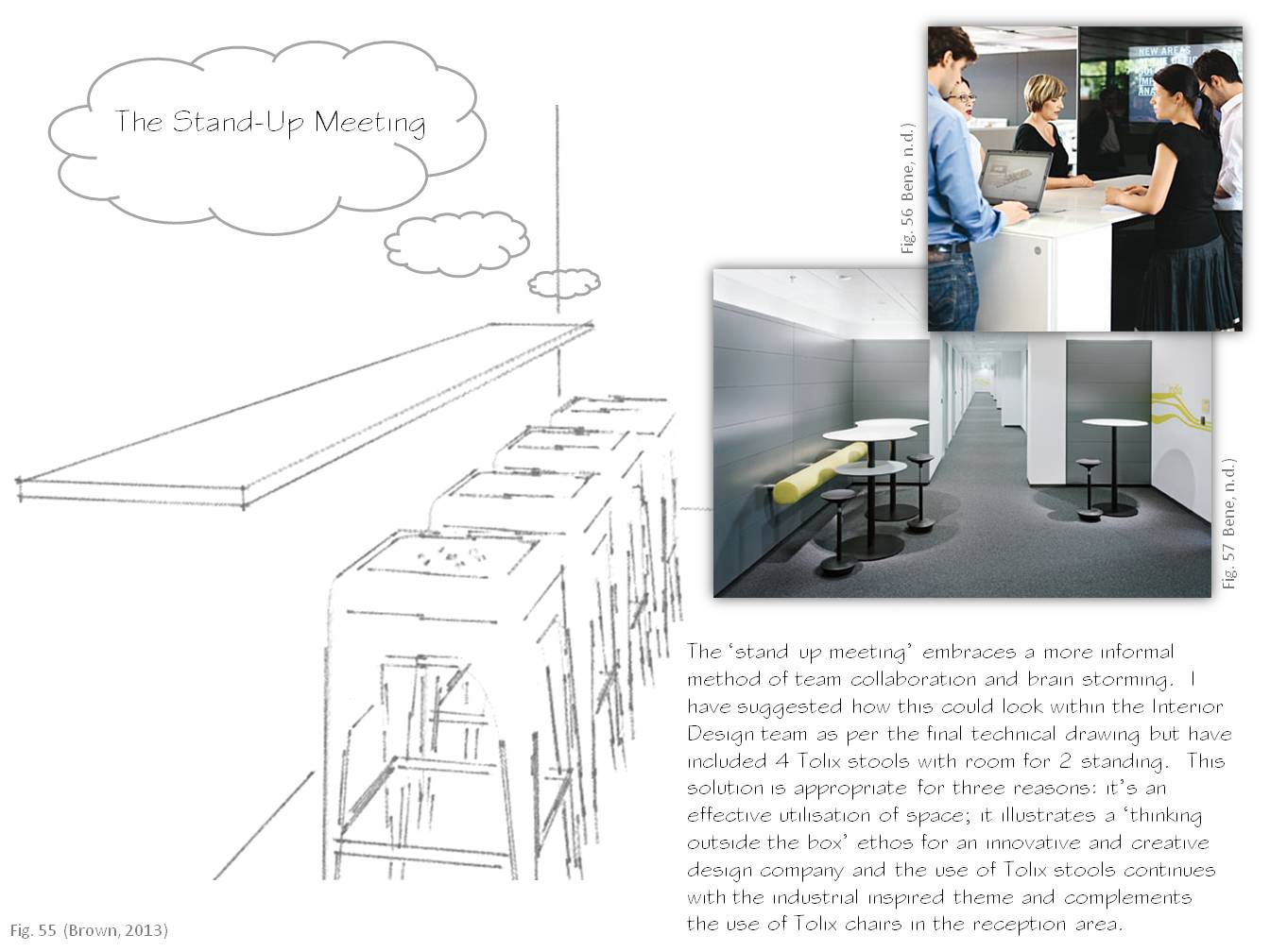

The Stand-Up Meeting Ethos

An illustration of one of my design concepts, that was inspired by the Standing Meeting ethos.

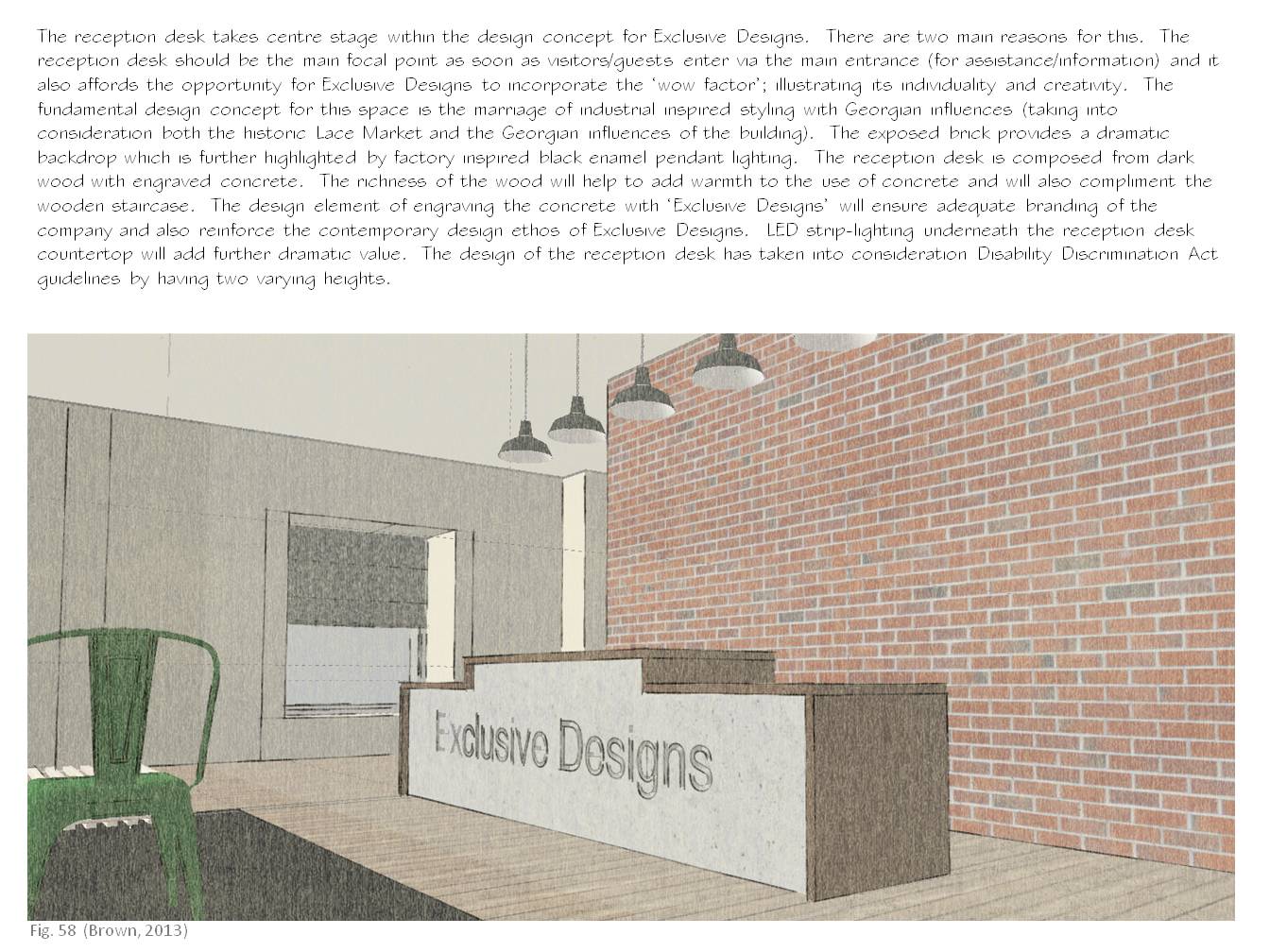

Reception Desk

Another illustration of the reception area and in particular the design of the reception desk with factory inspired pendant lighting (and exposed brick).

Schematic 1

This is called a Schematic and is the first stage in the more technical aspects of the design process. It involves application of block diagrams that represent space usage. I had to do 3 of these and then choose my preferred schematic (which is this one, though there was a slight change to the final technical floor plan).

Final Floor Plan - Ground Floor

And this is what caused me so much frustration, pain and misery!! This little box that contained more tiny little boxes!! But this just isn’t any ordinary little box; it’s a technical floor plan and EVERTHING in this space has been designed taking into consideration all the necessary Anthropometric Data and Disability Discrimination Act guidelines to the nearest mm!!! I kid you not.

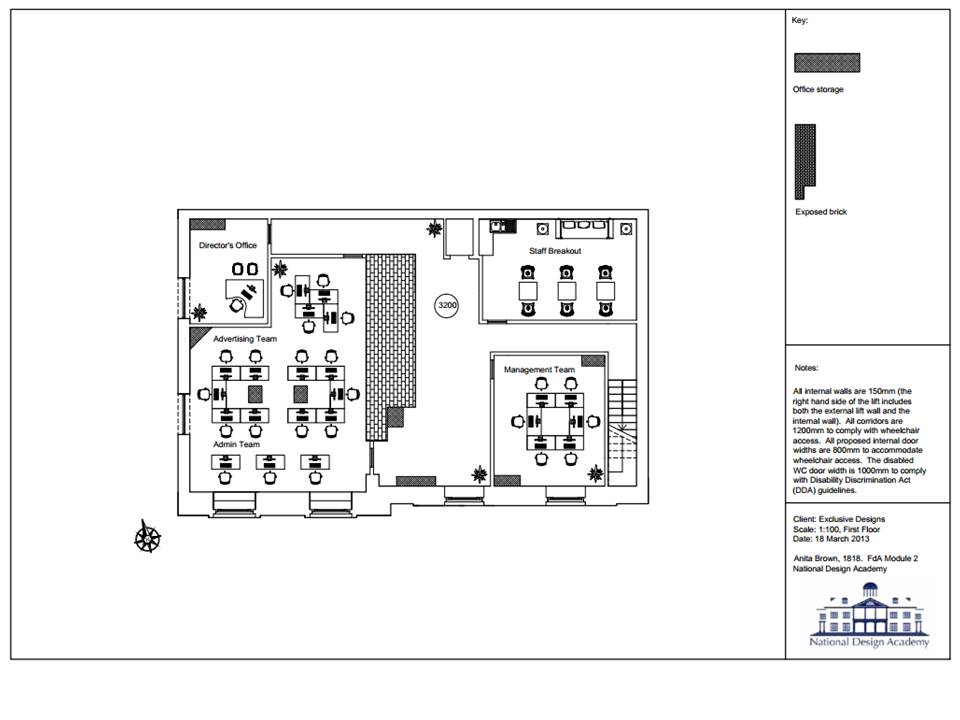

Final Floor Plan - First Floor

And this is the final technical floor plan of the first floor. Before I was able to devise these final plans I had to complete 3 development sketches. Being an Interior Design degree student ain’t easy.

Reception Desk Elevation

After having finalised my technical floor plans I then devised an elevation from each floor. Oh, the joys.

Elevation - Staff Breakout

And this is an elevation of the Staff Breakout area.

Reception Desk

Lift

Tolix

Staff Breakout
